Thread R32 T38 T45 T51 rock drilling bits hot insert stoning button bit

HomeProductsThread Button bitsT51 Thread Button BitThread R32 T38 T45 T51 rock drilling bit
Thread R32 T38 T45 T51 rock drilling bits hot insert stoning button bitThread R32 T38 T45 T51 rock drilling bits hot insert stoning button bitThread R32 T38 T45 T51 rock drilling bits hot insert stoning button bit

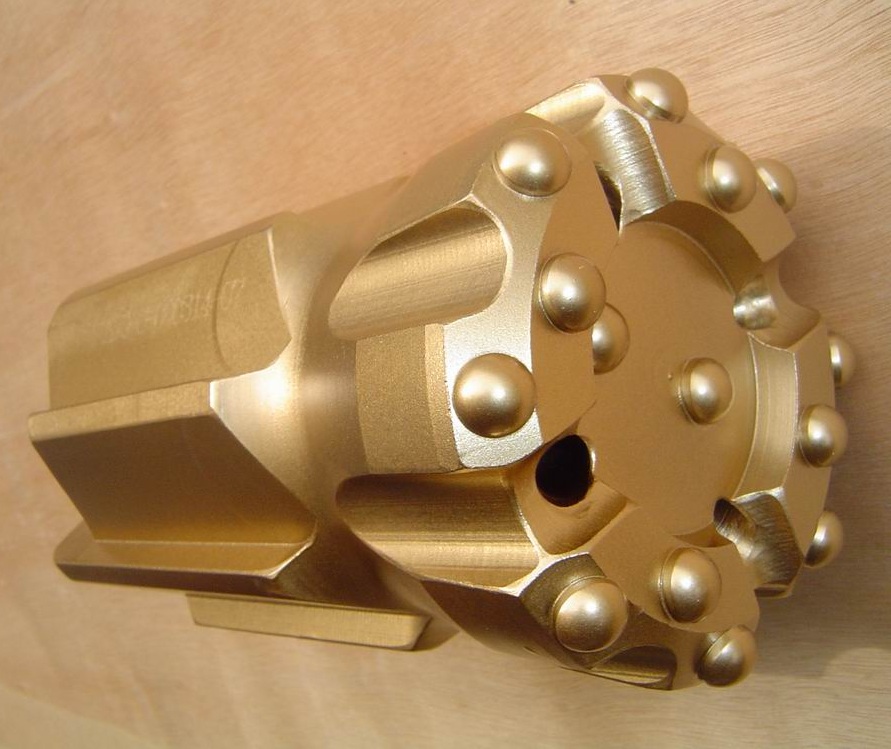

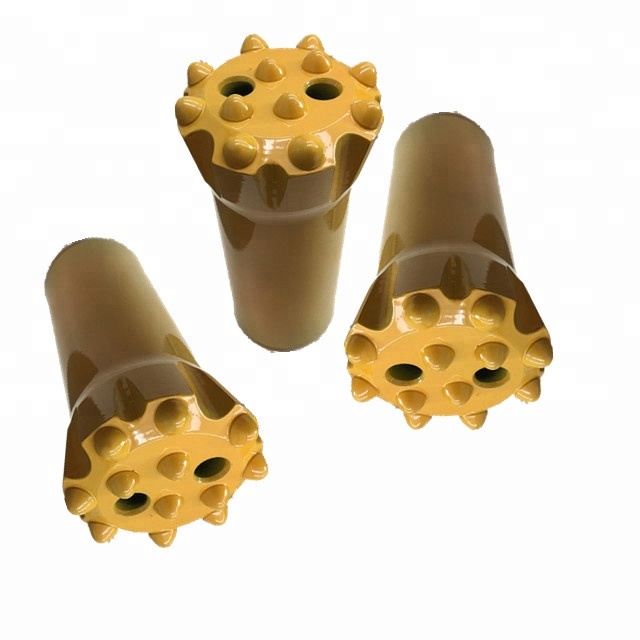

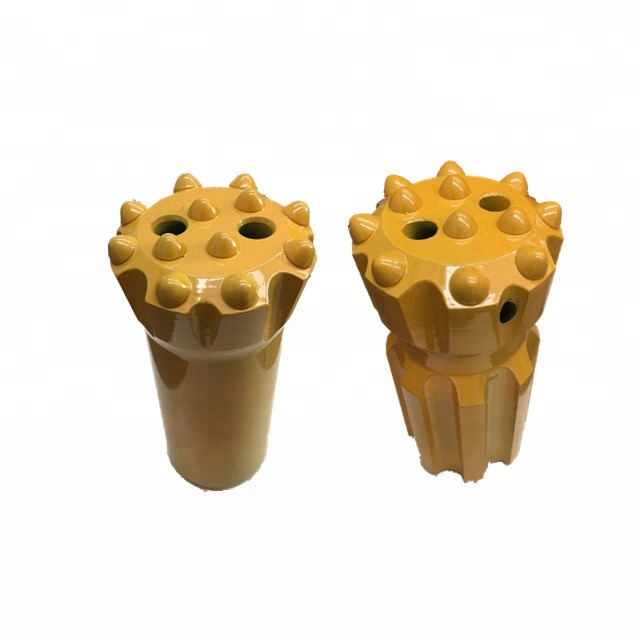

Thread R32 T38 T45 T51 rock drilling bits hot insert stoning button bit

  • Product Item：60683253459
  • Type:Drill Bit
  • Material:High Quality Steel and Tungsten Carbide
  • Use:Coal Mining
  • Category：T51 Thread Button Bit

    • Sent E-mail Inquiry

    Description

    PANDADRILL can make all sizes and shapes according to your request!Detailed Images

    Normal Specifications:

    Size Button Quantity
    		 Normal Skirt
    		 Retrac Skirt
    (Gauge + Front) Skirt Length(mm)
    Q41-R φ8*5+φ8*2 100mm 120mm
    Q45-R φ8*6+φ8*3 100mm 120mm
    Q48-R φ10*6+φ8*3 100mm 120mm
    Q51-R φ10*6+φ8*3 100mm 120mm
    Q57-T-R φ10*6+φ9*3 110mm 130mm
    Q64- T-R φ11*6+φ9*4 120mm 140mm
    Q76- T-R φ12*8+φ11*4 130mm 155mm
    Q89- T-R φ12*8+φ12*5 140mm 170mm
    Q102-T-R φ14*8+φ12*6 150mm 175mm
    Q115-T-R φ14*8+φ12*7 155mm 180mm
    Q127-T-R φ16*8+φ12*9 160mm 190mm


    Thread Types: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60
