Description

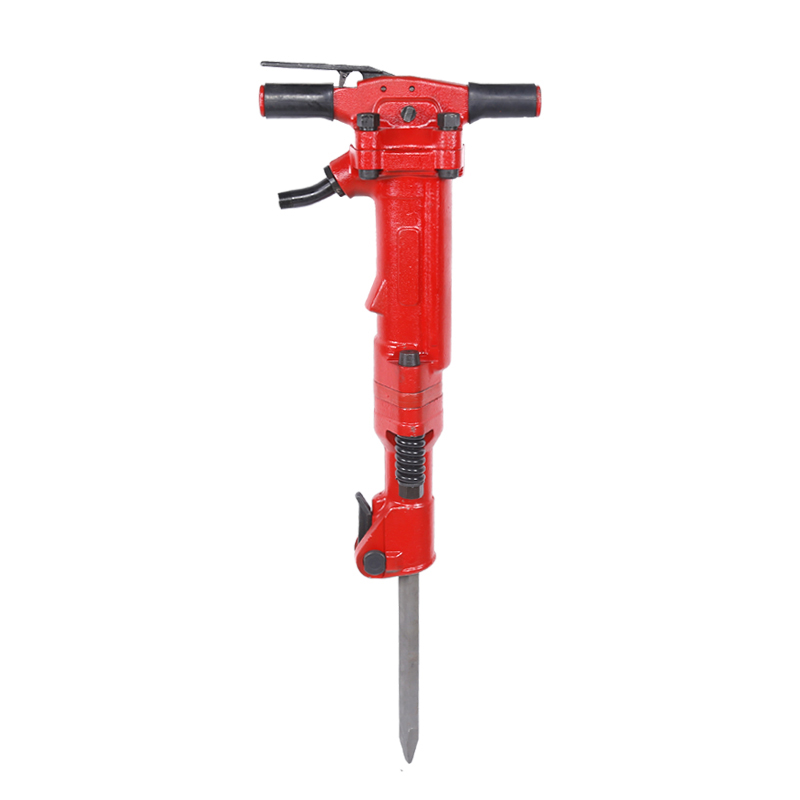

TPB-90 Air pick
TPB-90 crusher adopts the mature technology of TOKU Group, Is compressed air as the power of the crushing tool, can efficiently complete the reinforced concrete, rock, leaching green crushing work, with more horsepower, higher efficiency, longer life characteristics, especially suitable the crushing operation of extra-large, extra-thick and extra-hard objects is mine, bridge, road and municipal construction the ideal tool for foundation engineering construction!
Model
TPB-90
Piston diameter
66.67 mm
Piston stroke
152 mm
Percussive frequency
1400 B.P.M
Weight
42 kg
Length
723 mm
Air consumotion
2.2 m3/min
Air tube size
19 mm
Bit head size
32*152 mm/28*152mm
Air inlet size
3/4 P/T
