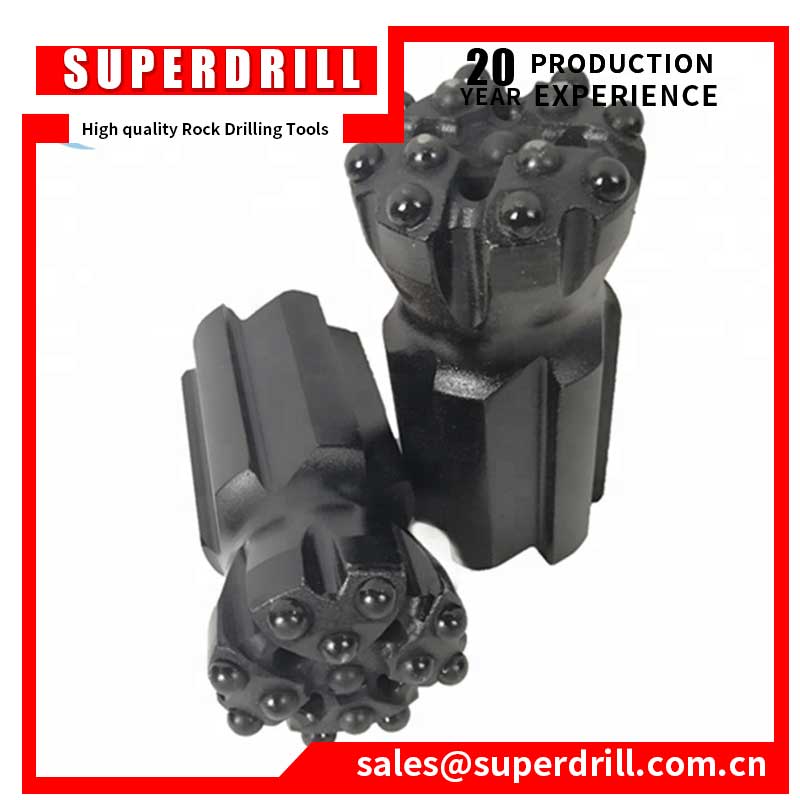

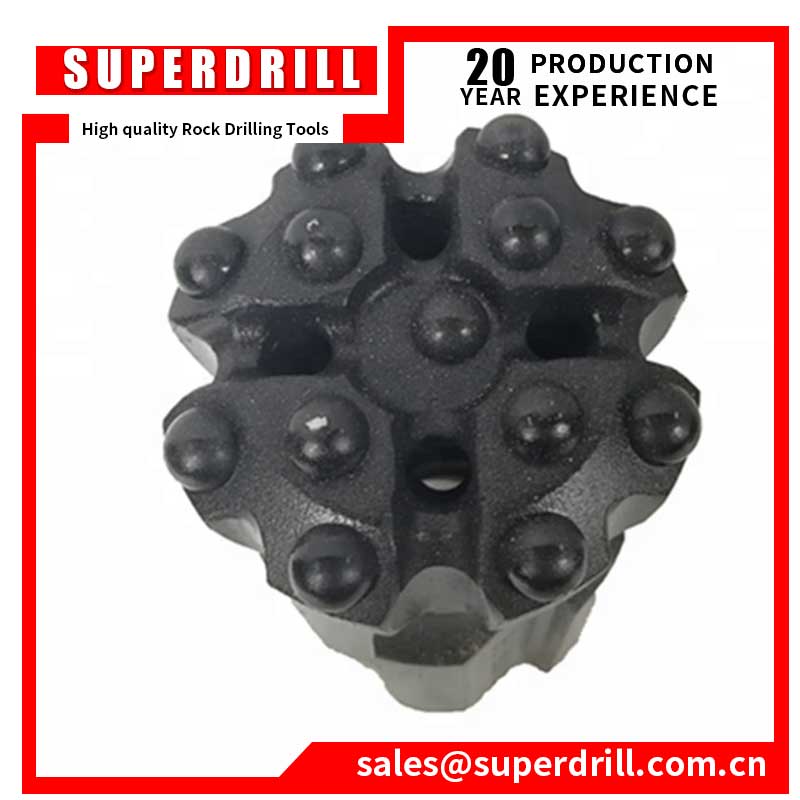

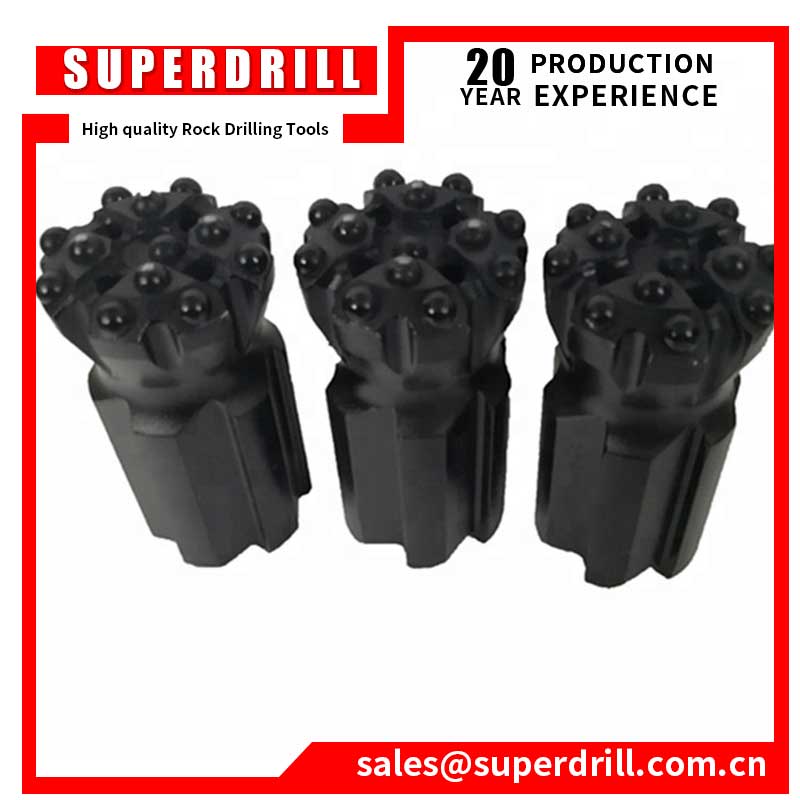

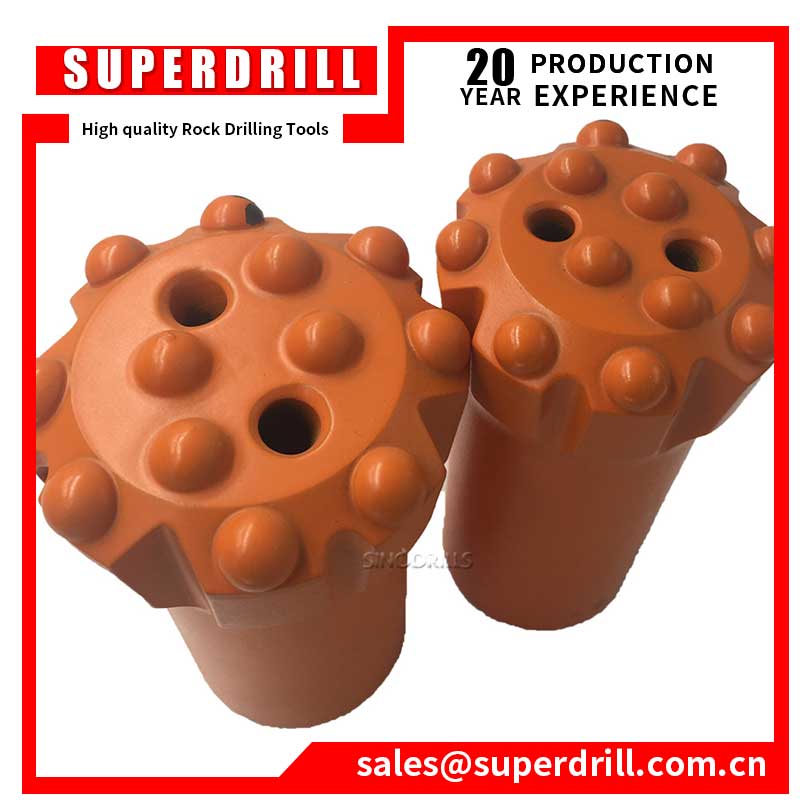

T38 T45 T51 T60 mining drill bits

HomeProductsThread Button bitsT45 Thread Button BitT38 T45 T51 T60 mining drill bits

Description

Product Description

High Quality mining drill rock button 102mm t51 drill bit


Diameter No X button diameter Flushing hole Weight
approx kg
mm inch Front Gauge Angle Front Side
Spherical buttons
89 3 1/2 4 x 13 8 x 13 40° 2 - 4.9
89 3 1/2 5 x 13 8 x 13 35° 2 1 4.9
89 3 1/2 3 x 11 , 2 x 11 6 x 13 35° 4 - 4.9
89 3 1/2 4 x 11 , 1 x 11 8 x 13 35° 4 - 4.9
89 3 1/2 4 x 11 , 1 x 13 8 x 13 35° 4 - 4.9
102 4 4 x 14 8 x 14 40° 2 - 5.8
102 4 6 x 13 8 x 16 35° 2 1 5.8
102 4 3 x 13 , 2 x 13 6 x 14 35° 3 1 5.2
102 4 4 x 13 , 1 x 13 8 x 14 35° 4 - 5.8
102 4 4 x 13 , 2 x 13 8 x 13 35° 5 1 5.8
115 4 1/2 6 x 14 8 x 14 35° 2 - 6.8
115 4 1/2 6 x 14 8 x 16 35° 2 - 6.8
115 4 1/2 4 x 13 , 2 x 13 8 x 14 35° 4 - 6.8
115 4 1/2 4 x 13 , 3 x 13 8 x 14 35° 4 - 6.8
115 4 1/2 4 x 14 , 2 x 14 8 x 16 35° 4 - 6.8
Parabolic buttons
89 3 1/2 5 x 13 8 x 13 35° 2 1 4.9
89 3 1/2 3 x 13 , 2 x 11 6 x 13 35° 4 - 4.9
89 3 1/2 4 x 11 , 1 x 11 8 x 13 35° 4 - 4.9
89 3 1/2 4 x 13 , 1 x 13 8 x 13 35° 4 - 4.9
102 4 4 x 14 8 x 13 40° 2 - 5.8
102 4 6 x 13 8 x 14 35° 2 1 5.8
102 4 3 x 13 , 2 x 13 6 x 14 35° 3 1 5.2
102 4 4 x 13 , 1 x13 8 x 14 35° 4 - 5.8
102 4 4 x 13 , 2 x 13 8 x 14 35° 4 1 5.8
115 4 1/2 6 x 14 8 x 16 35° 2 - 6.8
115 4 1/2 4 x 13 , 2 x13 8 x 14 35° 4 - 6.8
115 4 1/2 4 x 13 , 3 x 13 8 x 14 35° 4 - 6.8
115 4 1/2 4 x 14 , 2 x 14 8 x 16 35° 4 - 6.8
