Description

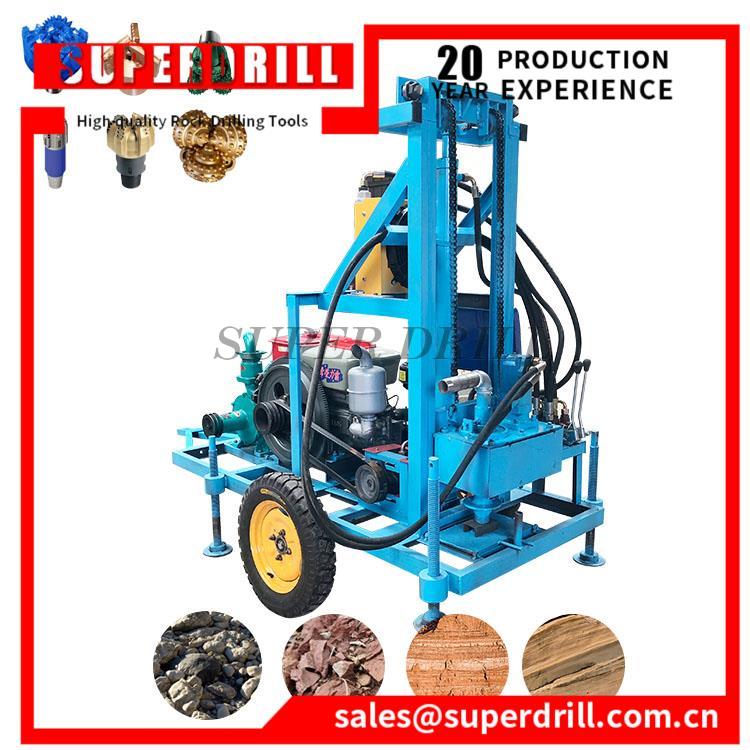

Drilling Machines / Well Drilling Machines / Nail Drill Machine / Water Drilling Machinerr
| Drilling rig model | EB-150 | Drill pipe replacement method | Thread button (automatic double thread) |
| Overall dimension | 1900*1100*2600 | Borehole diameter | Within 400mm |
| drill weight | 450KG | Diesel engine power | 22 hp |
| Applicable voltage | Diesel/Electric/Hydraulic Power | Drill pipe diameter | 50MM |
| Pump power | 3 inch centrifugal pump | Drill pipe thickness | 4mm |
| Drilling and crushing method | Impact Rotary | Drilling depth | Max 150M,Customize max 250m |
| lift height | The highest point of the machine is 2.7 meters | Warranty | 1 Year |
| Drill pipe length | 1.5M | Lifting force | 3T |
| Color | Can be customized | soil drill(give away two) | Customer requirement |
