Description
SUPERDRILL could supply lots of grades DTH Bits, they can be chosen according to different applications. Both soft, medium-hard, and hard rocks, Our DTH Bit could have a good performance.

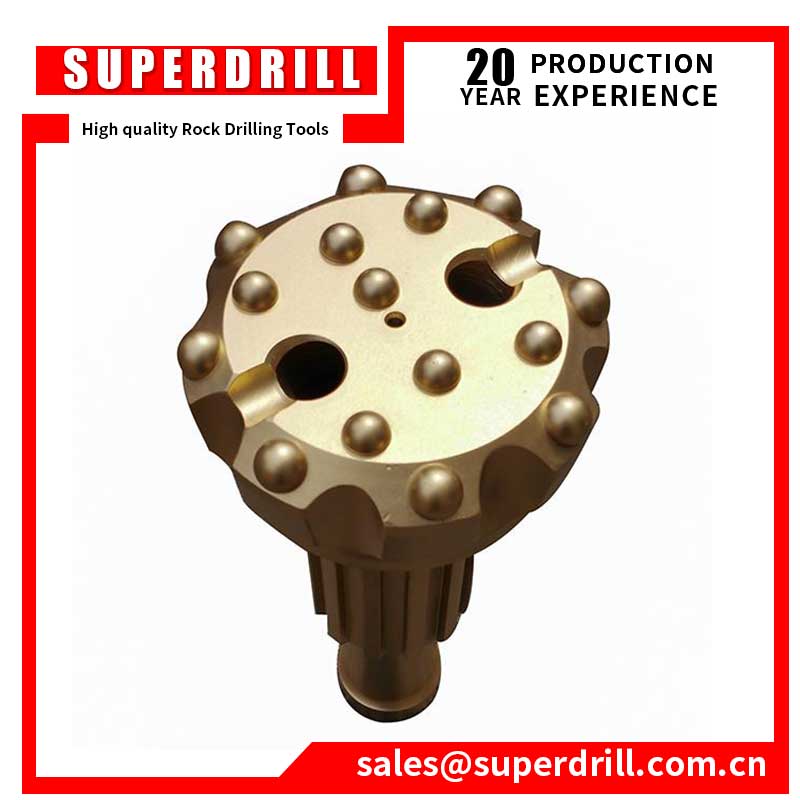

Product: MISSION DTH Button Bit
Shank Type: M30, M40, M50, M60/65, M380,
Bit Diameter: 85mm-305mm
Bit Face: Flat Face, Convex Face, Concave Face, Drop Center, Double Gauge.
|
Mission DTH Button Bit
|
|||||
| Shank Type | Diameter in mm | Air Holes No. | Gauge Buttons | Face Buttons | Approx. Weight |
| M 30 | 85 | 2 | 6*13mm | 4*12mm | 4.3 KGS |
| 90 | 2 | 7*13mm | 5*12mm | 4.6 KGS | |
| 95 | 2 | 7*13mm | 6*12mm | 4.9 KGS | |
| 100 | 2 | 7*13mm | 6*12mm | 5.2 KGS | |
| 105 | 2 | 8*12mm | 7*12mm | 5.8 KGS | |
| M 40 | 105 | 2 | 7*14mm | 6*13mm | 9.3 KGS |
| 110 | 2 | 7*14mm | 6*13mm | 10.0 KGS | |
| 115 | 2 | 8*14mm | 7*13mm | 10.5 KGS | |
| 120 | 2 | 8*16mm | 7*13mm | 12.0 KGS | |
| 127 | 2 | 8*16mm | 7*13mm | 13.0 KGS | |
| M 50 | 135 | 2 | 8*16mm | 8*13mm | 15.5 KGS |
| 140 | 2 | 8*17mm | 7*14mm | 16.0 KGS | |
| 146 | 2 | 8*18mm | 7*14mm | 16.5 KGS | |
| 152 | 2 | 8*17mm | 8*14mm | 17.0 KGS | |
| 165 | 2 | 8*18mm | 9*16mm | 18.0 KGS | |
| M 60/65 | 152 | 2 | 8*17mm | 8*14mm | 26.0 KGS |
| 165 | 2 | 8*18mm | 9*16mm | 27.0 KGS | |
| 171 | 2 | 8*18mm | 10*16mm | 29.0 KGS | |
| 190 | 3 | 9*18mm | 11*16mm | 32.0 KGS | |
| 203 | 3 | 9*18mm | 12*16mm | 37.0 KGS | |
| M 380 |
|
2 | 9*18mm | 12*16mm | 37.0 KGS |
| 216 | 2 | 10*18mm | 17*18mm | 48.0 KGS | |
| 241 | 2 | 10*18mm | 17*18mm | 63.0 KGS | |
| 254 | 3 | 12*18mm | 19*18mm | 70.0 KGS | |
| 292 | 3 | 12*18mm | 30*18mm | 85.5 KGS | |
| 305 | 4 | 12*18mm | 30*18mm | 98.0 KGS | |
