Diamond Grinding Wheels for Button Bits – For All Epiroc / Atlas Copco Secoroc Grind Matic BQ & Manual B Machines

HomeProductsDiamond Grinding Wheels for Button Bits

Diamond Grinding Wheels for Button Bits – For All Epiroc / Atlas Copco Secoroc Grind Matic BQ & Manual B Machines

  • Product Item：0012
  • Compatible Equipment：Atlas Copco Secoroc Grind Matic BQ2 / Manual B / BQ2-DTH / Manual B-DTH
  • Function：Resharpening carbide buttons on DTH & Top Hammer drill bits
  • Material：Diamond grinding wheel
  • Button Diameter Range：7mm – 20mm
  • Category：Products

    • Sent E-mail Inquiry

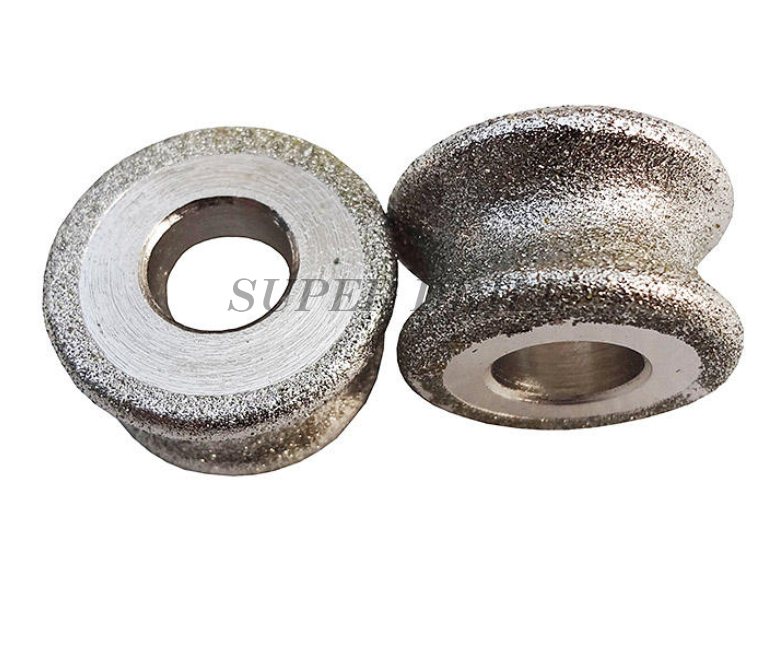

    Description

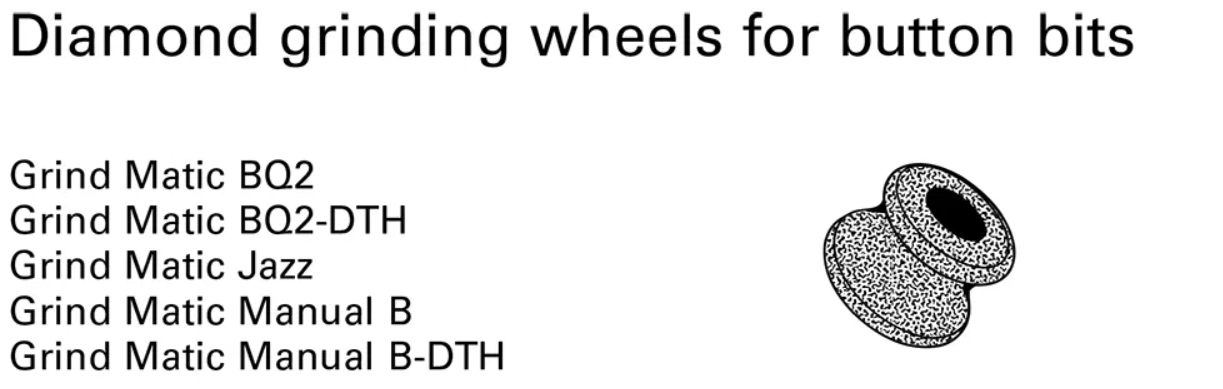

    Diamond grinding wheel specially designed for Atlas Copco Secoroc Grind Matic grinding machines. It is used for resharpening carbide buttons on DTH / Top Hammer button bits, restoring original shape and extending bit lifespan. Regular grinding increases drilling efficiency, reduces fuel & rig wear, and lowers cost per drilled meter.1764664330856492.png


    Applications

    ✔ Regrinding carbide buttons on button bits
    ✔ For DTH Bits, Top Hammer bits, Thread bits & RC bits
    ✔ Ideal for mining, quarrying, construction, water well & drilling contractors

    Compatible Atlas Copco Machines

    Grinding MachineButton Diameter
    Grind Matic BQ27–20 mm
    Grind Matic Manual B7–20 mm
    Grind Matic BQ2-DTH7–20 mm
    Grind Matic Manual B-DTH7–20 mm

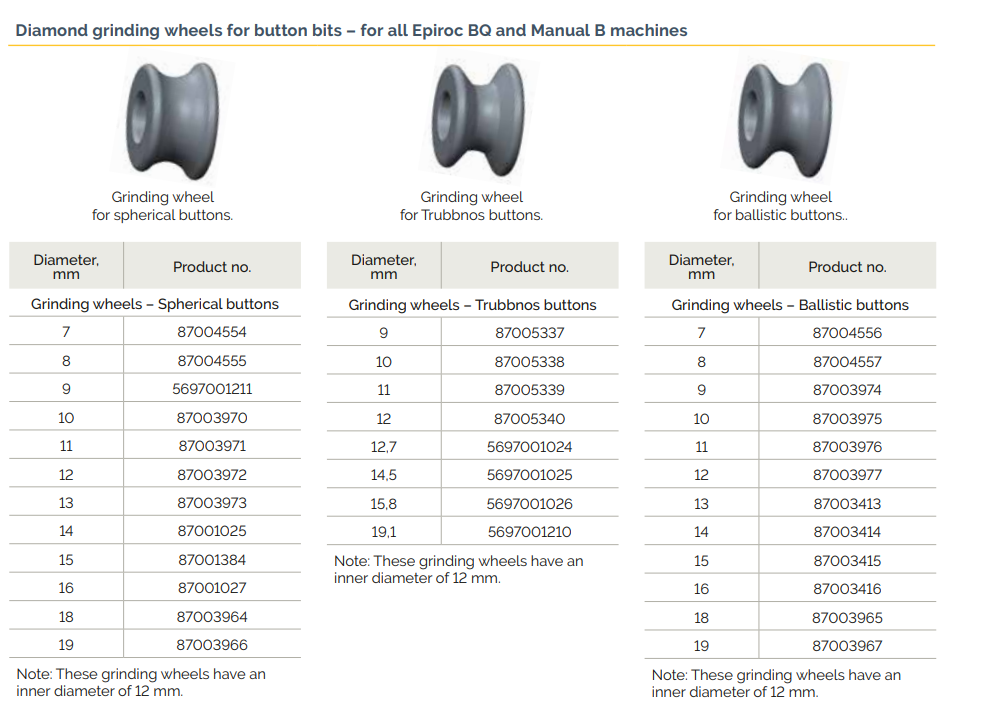

    Button Diameter Options

    7mm / 8mm / 9mm / 10mm / 11mm / 12mm / 13mm / 14mm / 15mm / 16mm / 18mm / 19mm / 20mm


    Key Advantages
