Description

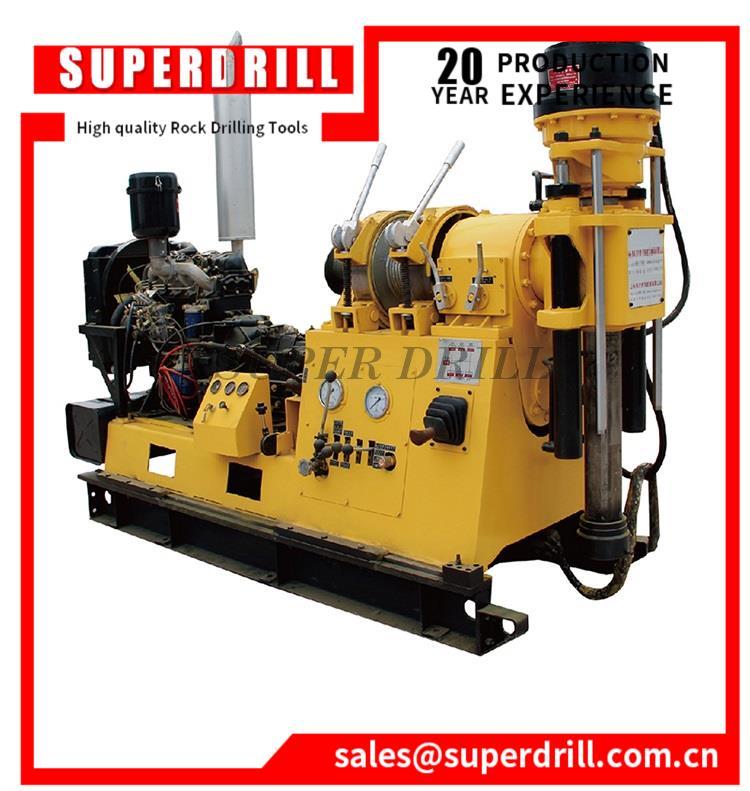

hydraulic diesel engine water well drill machine or water well drill rig for sales
Our drilling rigs are widely used in water well drilling,geological exploration,construction building exploration,drilling
inspection of concrete structure holes,river dam construction,subgrade grouting hole drilling abd direct grouting,ground
temprerature central conditioning construction,etc..
Product Parameters
Drilling rig and accessaries technical parameters and specification is as the following:
|
(T.parameter)
|
Model
|
RL-130
|
RL-180
|
RL-200
|
|
Drilling depth(m)
|
130
|
180
|
200
|
|
|
Open hole dia(mm)
|
220
|
220
|
325
|
|
|
End hole dia(mm)
|
75
|
75
|
75
|
|
|
Drill rod dia(mm)
|
42-60
|
42-60
|
42-60
|
|
|
Drill angle(°)
|
90-75
|
90-75
|
90-75
|
|
|
Matching power(kw)
|
13.2
|
13.2
|
15
|
|
|
Weight without power(kg)
|
3350
|
3400
|
3600
|
|
|
Dimension(m)
|
3.8*1.95*2.7
|
3.8*1.95*2.7
|
3.8*1.95*2.7
|
|
|
(Spindle) |
Speed(r/min)
|
142/285/570
|
130/300/480/730/830/1045
|
64/128/287/557
|
|
Stroke(mm)
|
450
|
450
|
450
|
|
|
(Crawlerchassis) |
Crawler size(mm)
|
350*90*48part
|
350*90*48part
|
350*90*48part
|
|
climbing angle(°)
|
20
|
20
|
20
|
|
|
moving speed(km/h)
|
10km/h
|
10km/h
|
10km/h
|
|
|
hydraulic landing leg valid height
|
1300
|
1300
|
1300
|
|
|
(Drill Mast)
|
Rated load(ton)
|
18
|
18
|
18
|
|
Height(m)
|
6.5
|
6.5
|
6.5
|
|
|
(Mud pump) |
Flow(L/min)
|
160
|
160
|
160
|
|
Max.pressure(Mpa)
|
1.3
|
1.3
|
1.3
|
|
|
times/min
|
165
|
165
|
165
|
|
|
|
Inlet hose dia(mm)
|
51
|
51
|
51
|
|
Outlet hose dia(mm)
|
32
|
32
|
32
|
